Megh Neel - 745W BLDC Motor, 1500 RPM with Integrated Cycloidal Gear Box
| HIGHLIGHTS |
- 745 Watts, 1500 RPM Brushless DC Motor
- In-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Integrated Cycloidal Gear Box with reduction of 10
- Made in Coimbatore, India
- Typical applications include:- Robotics, Rovers, AGV, Trolleys, Grinders, Industrial Mixers, Industrial Floor Cleaning Equipments, etc
|
 |
| MOTOR SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
48 VDC |
60 VDC |
230 VAC |
| Rated Current |
19 A |
15 A |
5 A |
| Rated Power (Output) |
745 Watts |
| Rated Speed (RPM) |
1500 RPM |
| Rated Torque (Nm) |
4.8 Nm (Output from Gear Box) |
| Finish |
Powder Coated |
| GEAR BOX SPECIFICATIONS |
|
| Parameter |
Value |
| Gear Box Type |
Cycloidal |
| Ratio |
10:1 |
| Output Shaft |
19 mm Diameter x 40 mm length |
| Keyway |
6 mm width x 3 mm depth x 30 mm length |
| Mounting |
Face |
| Weight |
9.6 Kilograms (Including Motor) |

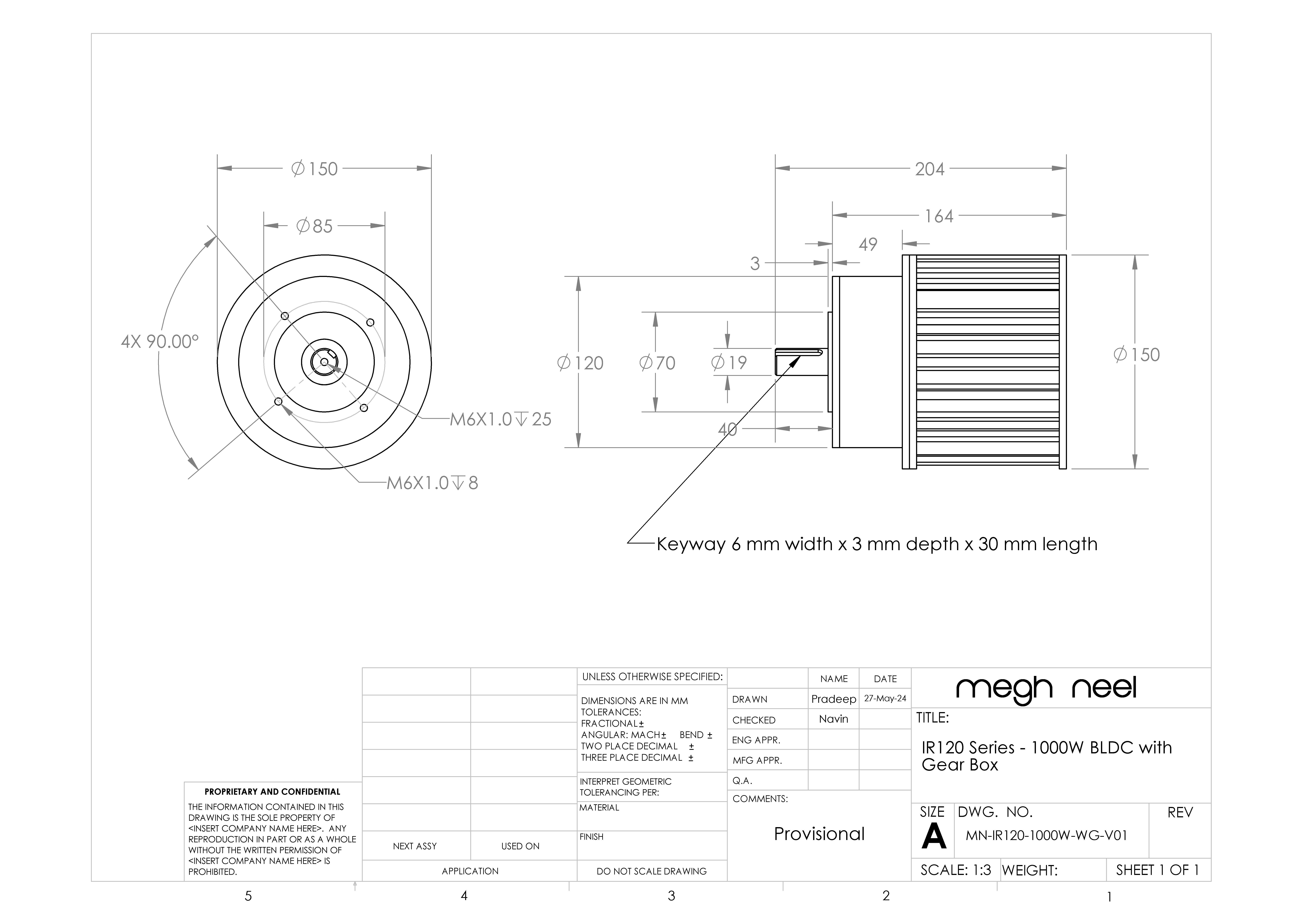

| Dimensions |
|
|
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
