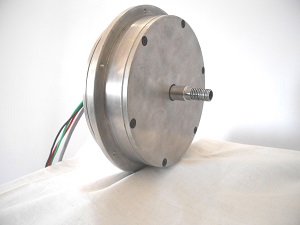

Megh Neel - 210W BLDC Hub Motor, 4000 RPM
| HIGHLIGHTS |
- 210 Watts (Input), 4000 RPM, 3Phase Brushless DC Motor
- Out-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Insulation Class F
- Made in Coimbatore, India
- 1 Year warranty against any manufacturing defects
- Specially designed for Ball Throwing Machines
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
24 VDC |
| Rated Current |
9 A |
| Rated Power (Input) |
210 Watts |
| Rated Speed (RPM) |
4000 RPM |
| Rated Torque (Nm) |
0.4 Nm |
| Motor Mounting |
Shaft Mounting |
| Shaft Thread Size |
M14 |
| Shaft Length |
39 mm length |
| Machine Length (ML) |
128 mm (from shaft end to end) |
| Finish |
Aluminium Finish |

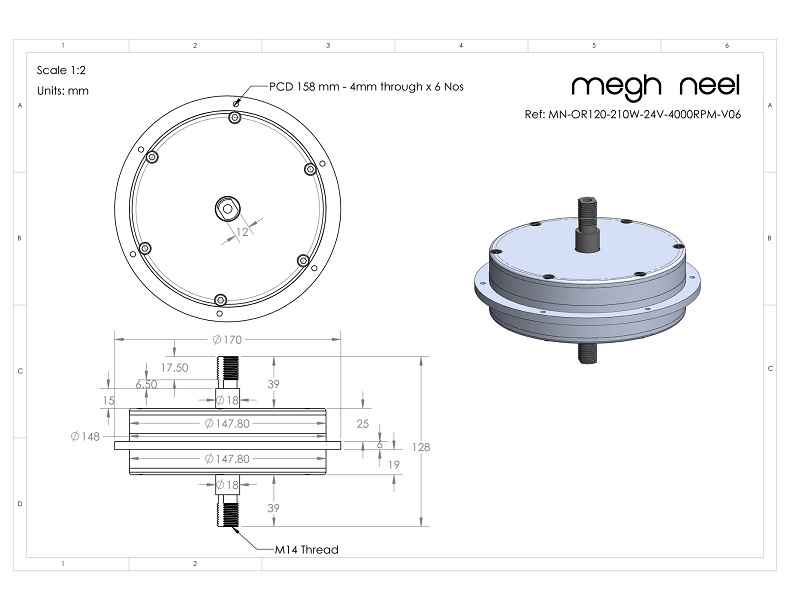

| Dimensions |
|
|
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
