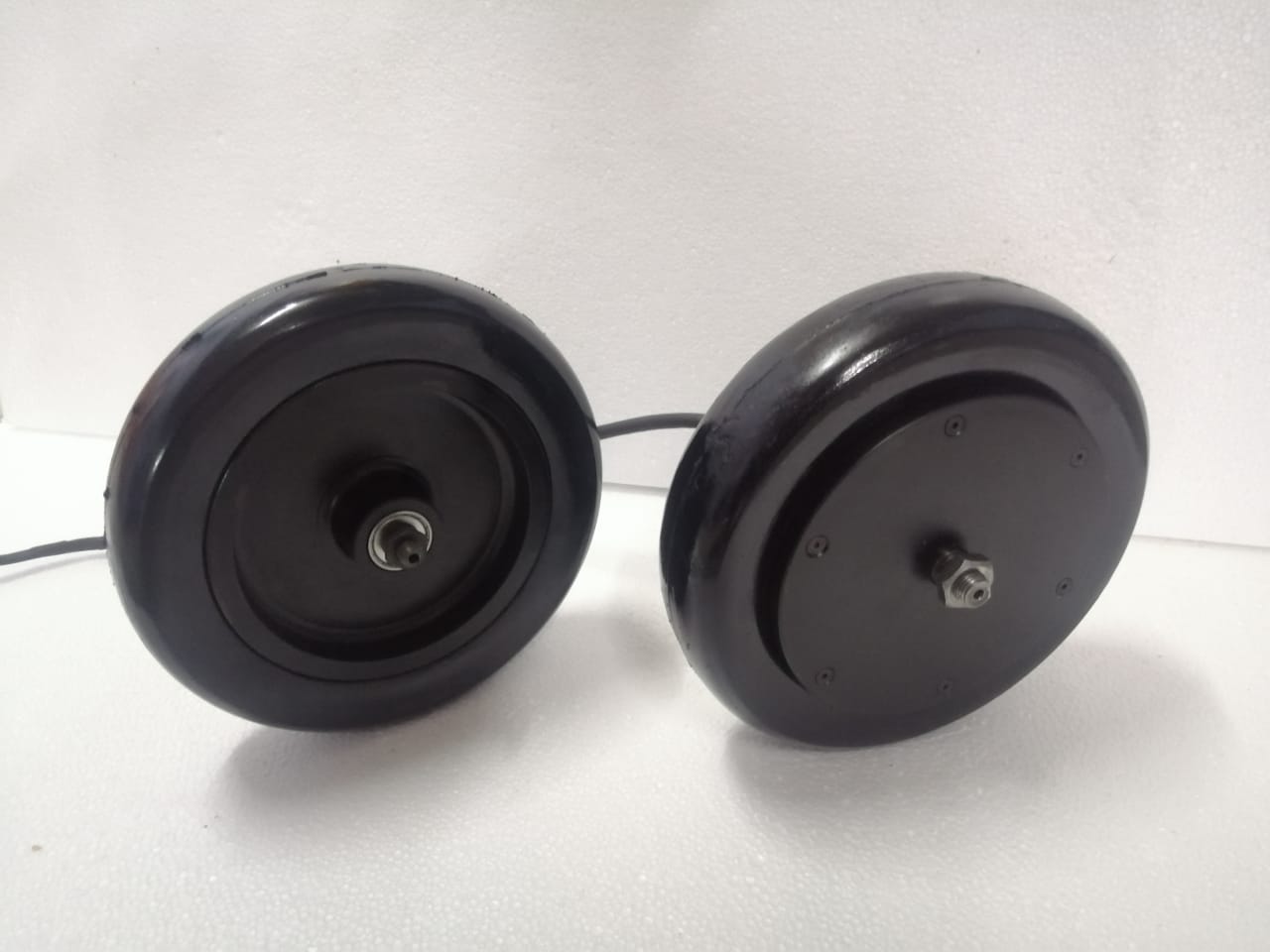

Megh Neel - 500W BLDC Mini Hub Motor
| HIGHLIGHTS |
- 24/36/48VDC, 250 to 500 Watts (Input), Brushless DC Motor
- Out-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Insulation Class F
- Made in Coimbatore, India
- 1 Year warranty against any manufacturing defects
- Specially designed for electric mini scooters
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
24 / 36 / 48 VDC |
| Rated Current |
10.5 A |
| Rated Power (Output) |
200 to 420 Watts |
| Rated Speed (RPM) |
350 to 700 RPM |
| Rated Torque (Nm) |
5.7 Nm |
| Motor Mounting |
Single Sided or Double Sided Shaft Mounting |
| Shaft Thread Size |
M14 |
| Shaft Length |
15 mm length |
| Machine Length (ML) |
98 mm (from shaft end to end) |
| Finish |
Black Powder Coated Finish |
| Tyre Size |
8.5 inches x 2 inches |
| Tyre Material |
Solid Polyurethane |

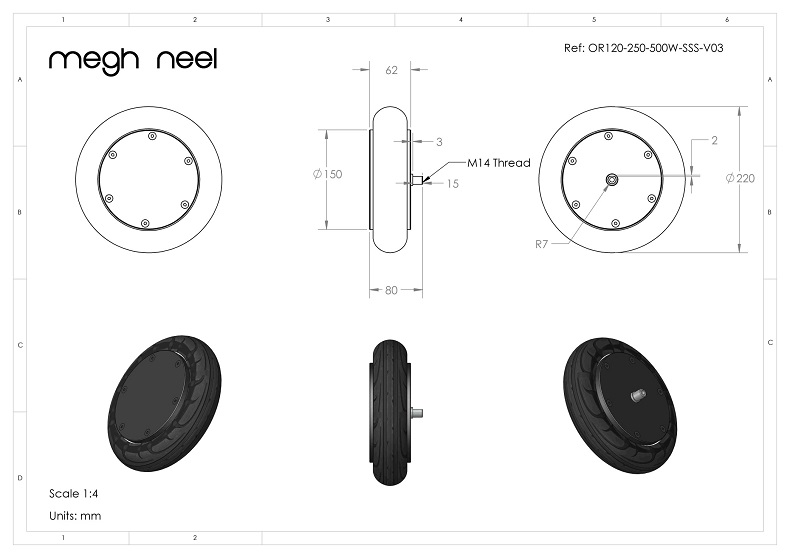

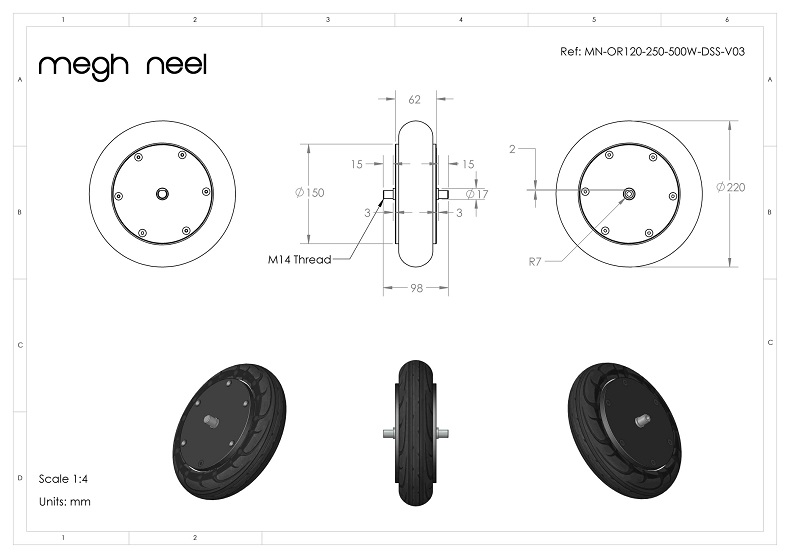

| Dimensions |
|
|
 |
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
