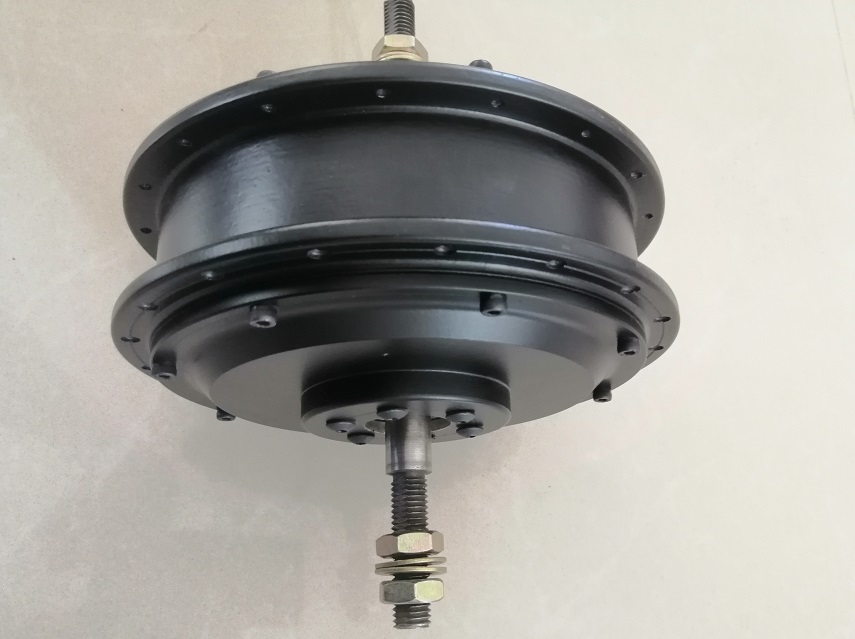

Megh Neel - 250-500W BLDC Bicycle Hub Motor
| HIGHLIGHTS |
- 24/36/48VDC, 250 to 500 Watts (Input), Brushless DC Motor
- Out-runner rotor
- Internal Sun Planetary Gear Reduction
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Insulation Class F
- Made in Coimbatore, India
- 1 Year warranty against any manufacturing defects
- Specially designed for electric mini scooters
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
24 / 36 / 48 VDC |
| Rated Current |
20.8/13.8/10.5 A |
| Rated Power (Output) |
Upto 500W |
| Rated Speed of internal motor (RPM) |
1500 RPM |
| Rated Torque of internal motor (Nm) |
3.2 Nm |
| Gear Ratio |
5:1 (Reduction) |
| Hub RPM |
300 RPM |
| Hub - Rated Torque |
16 Nm |
| Motor Mounting |
Double Sided Shaft Mounting |
| Shaft Thread Size |
M14 |
| Shaft Length |
15 mm length |
| Installation Width |
135 mm |
| Hub Diameter |
180 mm |
| Finish |
Black Powder Coated Finish |
| Spoke Specification |
36H x 12G |

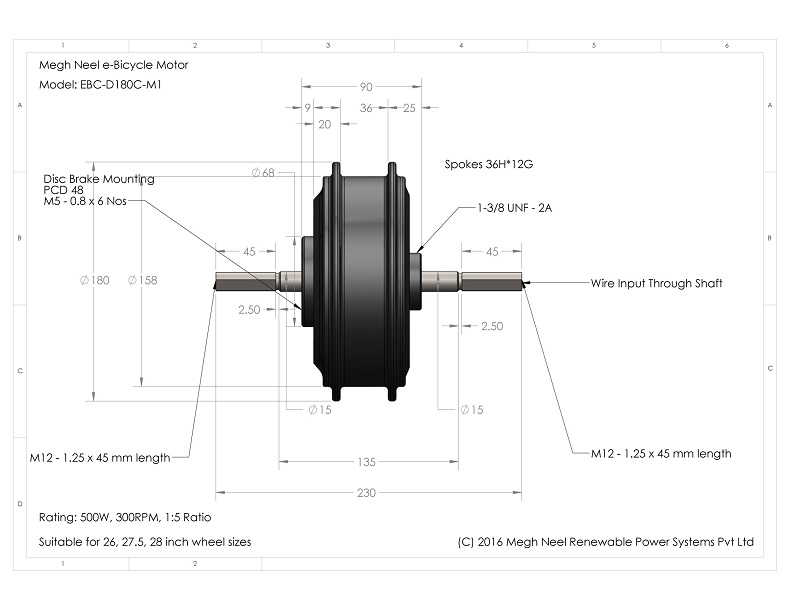

| Dimensions |
|
|
|
Download detailed technical specifications here
|
|
