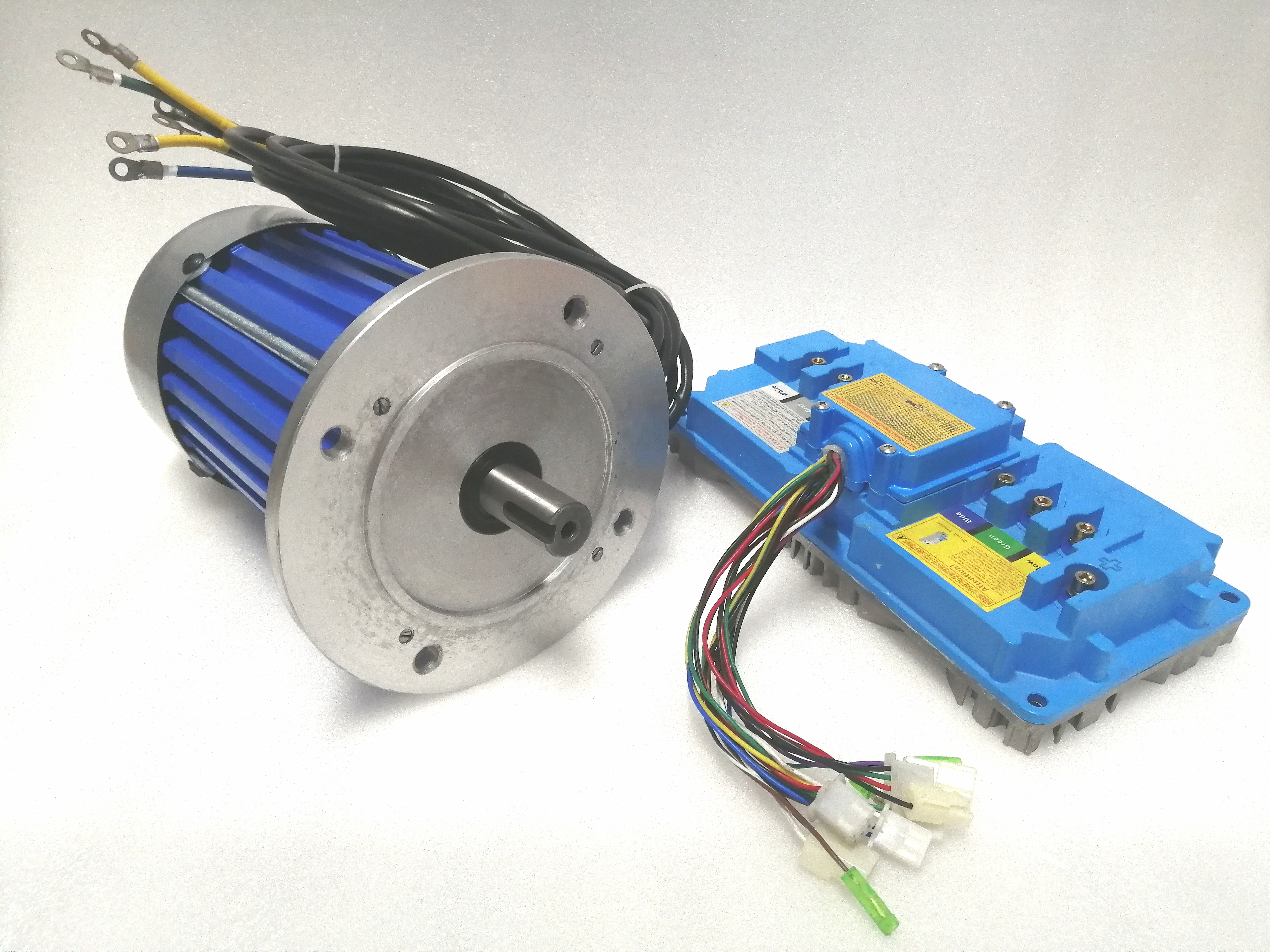

Megh Neel - 8000W BLDC Motor, 3000 RPM
| HIGHLIGHTS |
- 8000 Watts (Input), 3000 RPM, 6 Phase Brushless DC Motor
- In-runner rotor
- Operating temperature up to 150oC
- External Control with Sensor / sensor-less commutation
- Insulation Class F
- Made in Coimbatore, India
- 1 Year warranty against any manufacturing defects
- Also available with differential gear box mounting arrangement
- Typical applications include:- Mini Cars, Fork Lift, Go Karts, Carts, Industrial Applications, etc.,
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
72 VDC |
| Rated Current |
112 A |
| Rated Power (Input) |
8000 Watts |
| Rated Speed (RPM) |
3600 RPM |
| Rated Torque (Nm) |
18 Nm |
| Number of Phases |
6 Phase |
| Motor Mounting |
Flange Mounting |
| Shaft Diameter |
24 mm diameter |
| Shaft Length |
50 mm length |
| Machine Length (ML) |
265 mm (including fan cowl) |
| Finish |
Powder Coated |

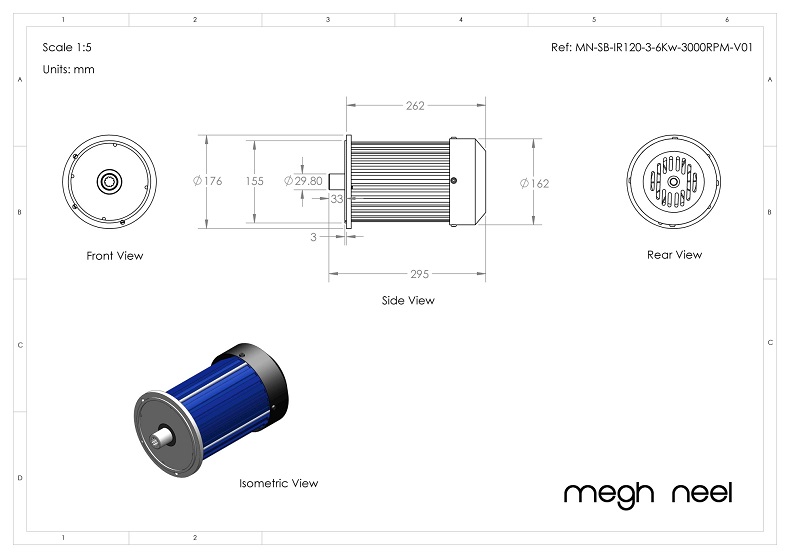

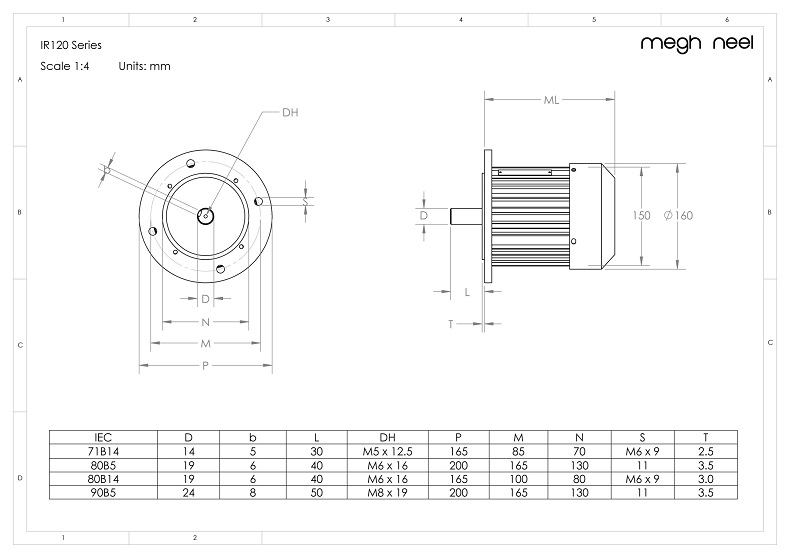

| Dimensions |
|
|
|
|
|
Download detailed technical specifications here
|
|
