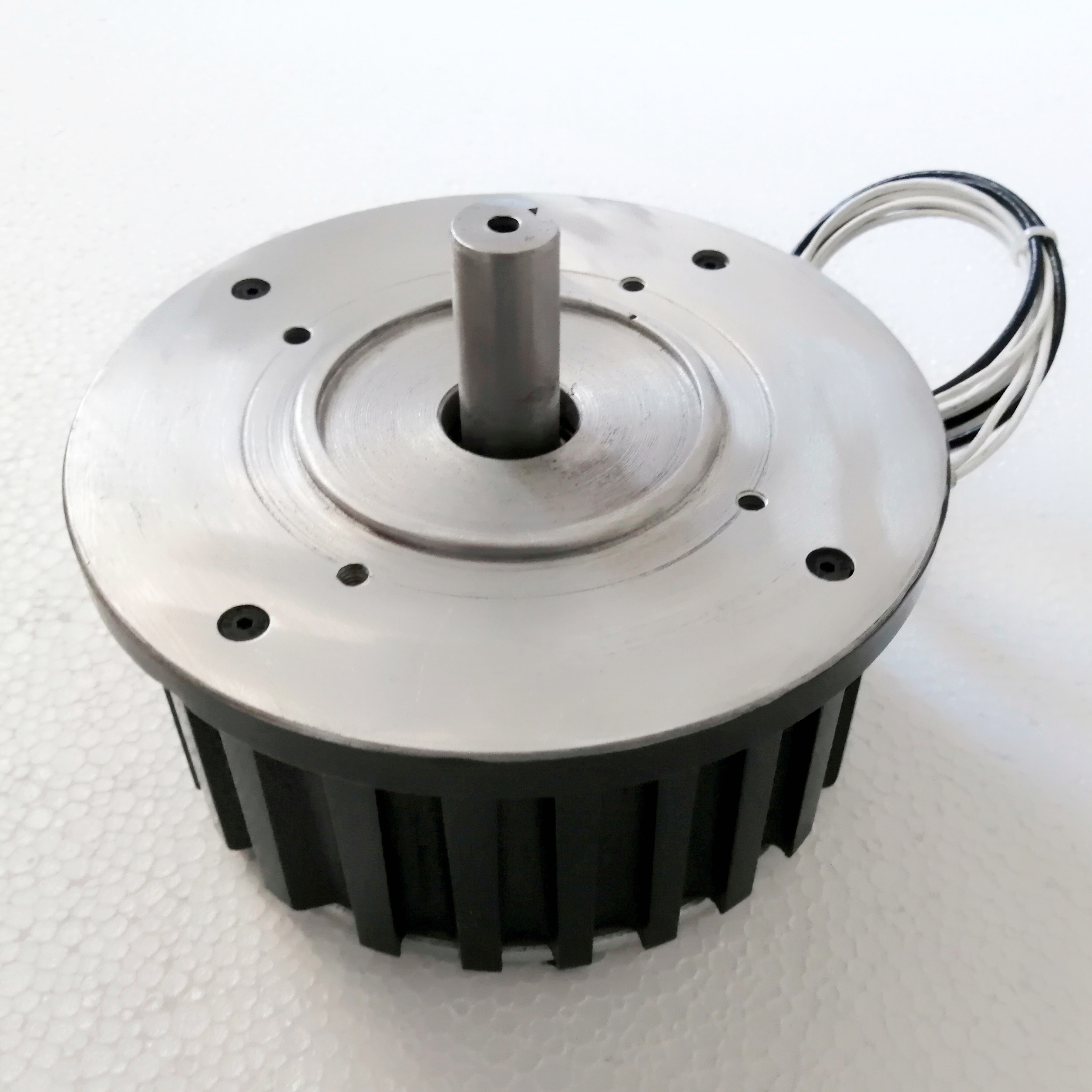

Megh Neel - 350W BLDC Motor, 1500 RPM
HIGHLIGHTS |
- 350Watts, 1500 RPM Brushless DC Motor
- In-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Available in 24 and 36 VDC
- Made in Coimbatore, India
- Typical applications include:- Bicycles, AGV, Pumps etc.,
|
![](/portals/0/C360_2019-02-23-22-02-12-232.jpg?ver=w3Nwt4F4HI6vh5o97dkAGw%3d%3d) |
SPECIFICATIONS |
Parameter |
Value |
Rated Voltage |
24VDC |
36VAC |
Rated Current |
14.8 A |
10 A |
Rated Power (Input) |
350 Watts (Max) |
Rated Speed (RPM) |
1500 RPM |
Rated Torque (Nm) |
1.9 Nm |
Motor Mounting |
Face Mounting |
Shaft Diameter |
14 mm diameter |
Shaft Length |
20 mm length |
Finish |
Powder Coated |
Dimensions |
![](/portals/0/MEGHNEEL-IR120-BLDC-350W-DRAWING-V01_1.jpg?ver=1DcHC_8F7YfLlo0SX8iJrQ%3d%3d)
|
Download detailed technical specifications here
|
