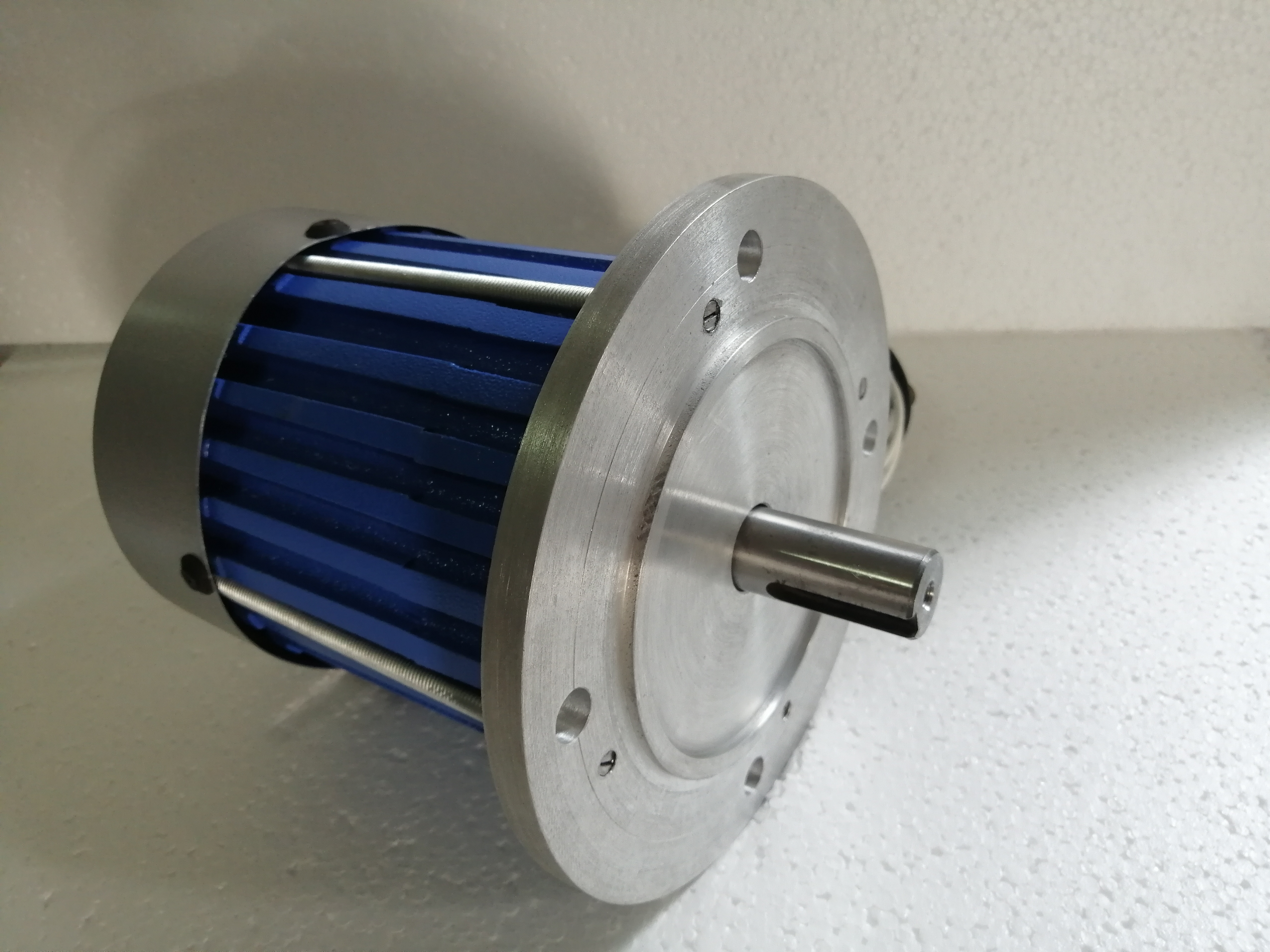

Megh Neel - 2000W BLDC Motor, 3000 RPM
| HIGHLIGHTS |
- 2000 Watts (Output), 3000 RPM Brushless DC Motor
- In-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Insulation Class F
- Made in Coimbatore, India
- 1 Year warranty against any manufacturing defects
- Typical applications include:- Fork Lift, Go Karts, Carts, Industrial Applications, etc.,
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
48 VDC |
60 VDC |
72 VDC |
| Rated Current |
48 A |
38 A |
32 A |
| Rated Power (Output) |
2000 Watts |
| Rated Speed (RPM) |
3000 RPM |
| Rated Torque (Nm) |
6.45 Nm |
| Motor Mounting |
Face / Flange Mounting |
| Shaft Diameter |
14 mm / 19 mm / 24 mm diameter |
| Shaft Length |
30 / 40 / 50 mm length |
| Machine Length (ML) |
200 mm (including fan cowl) |
| Finish |
Powder Coated |
| Dimensions |
|
|
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
