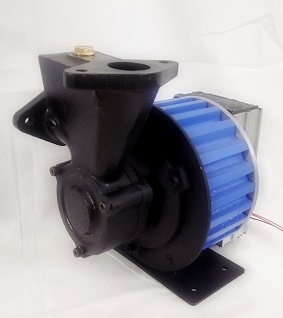

Megh Neel - IR120 Series - BLDC Monoblock Pump - 0.5 HP
| HIGHLIGHTS |
- 375Watts (Input), Pump using 3000 RPM Brushless DC Motor
- Self priming mono block pump
- Operating temperature up to 80oC
- Built in controller
- Made in Coimbatore, India
- Typical applications include:- Home, Resorts and Agricultural Farms
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
24/36/48 VDC |
| Rated Current |
15.6/10.4/7.8 A |
| Rated Power (Input) |
375 Watts |
| Rated Speed (RPM) |
3000 RPM |
| Rated Torque (Nm) |
1 Nm |
| Motor Mounting |
Foot |
| Pipe Size (Inlet - Outlet) |
1 inch - 3/4 inch |
| Finish |
Powder Coated |
| |
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
